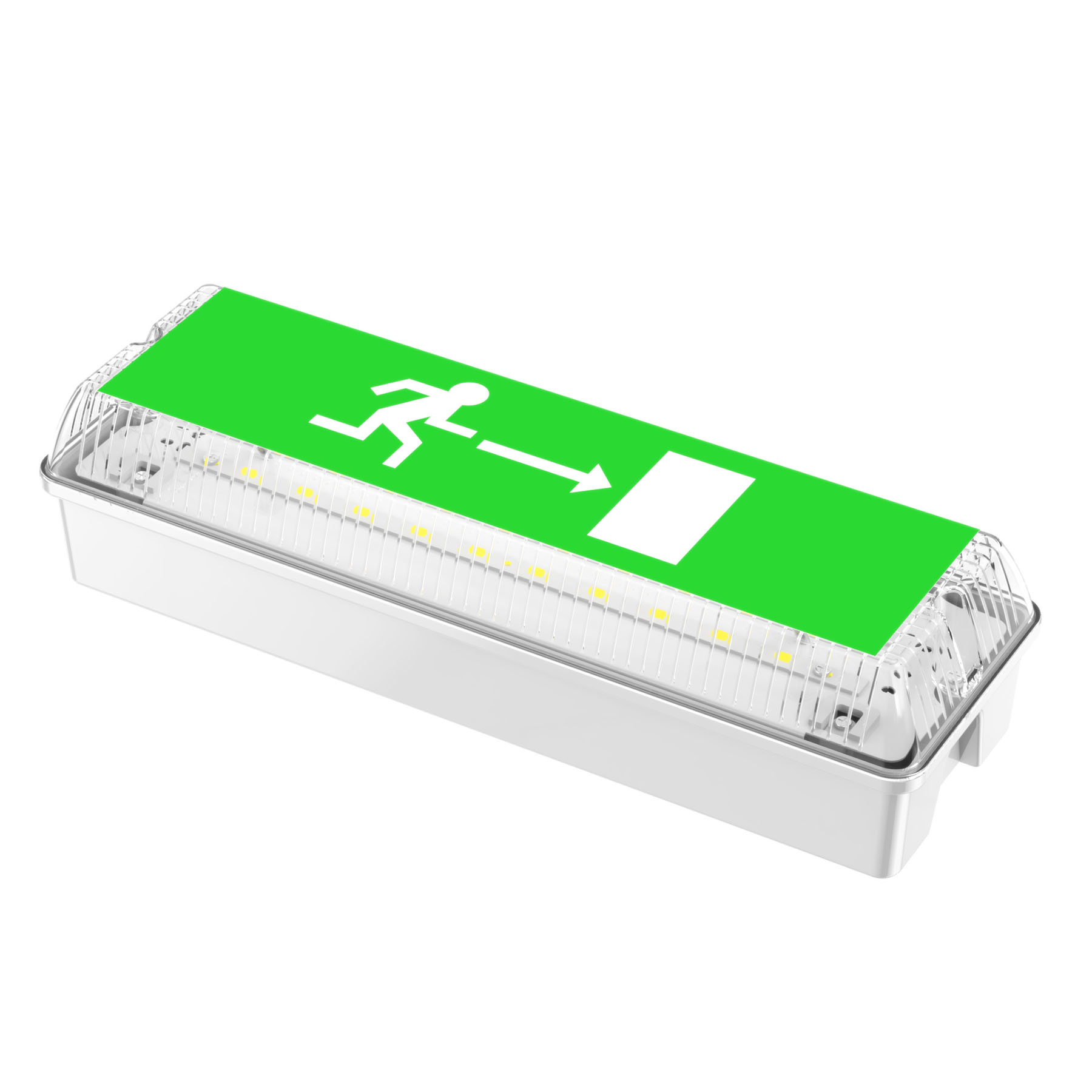

Product Name：Emergency Light IP54
Product Model：YH-14T

　　 Product Description：
Features
♦ IP54, versatile and flexible in demanding environments
♦ Can be used as emergency and reference luminaire
♦ Has both continuous operation ( maintained ) and operation at power failure ( non-maintained)
♦ Supplied with interchangeable pictograph

Specifications

Option	Standard /Self-test Version	LED Numbers	20pcs White LED
	With surface pictograph/ Without pictograph	Viewing distance	20M
	Maintaind / Non-maintaind	Supply Voltage	230V ± 10% 50Hz
Battery	Ni-Cd, 4.8V800mAh	IP Rate	IP54
Dimensions(mm)	367 x 117 x 89mm	Certification	CE RoHS
Installation	Ceiling mounting/Wall mounting	Material	ABS Plastic box +Transparent ABS cover
Emergency time	3 hours	Hosing color	white
Power	≤10W	Insulation Class	Ⅱ

Order code
Note: boxes 1 to 3 must be specified on all models with one single letter in each box.

1, Versions
S - Standard verison T - Self - test version

2, Maintained / Non-Maintainded
M - Maintained N - Non-Maintained

3, Pictograph
W - With surface pictograph N - Without pictograph

Example
YH-14T - SMW
Present the YH-14T standard version, maintained, with surface pictograph Exit Sign
Product Size
