LED Emergency Exit Sign
Product Name:Fire LED Emergency exit signs light
Product Model:YH-03S
   Product Description:
Features
♦ Easy to install - four mounting ways
♦ Screws fixed sign legends - easy replacement, the legend panel is an optional part of the exit sign
♦ Light source - long life, ultra bright, energy saving, maintenance free LED
♦ Appealing, novel, high style design
♦ High performance recharge and discharge protection system
♦ Rechargeable backup build-in battery

Specifications
Option Self-test Version LED Numbers 15pcs White LED

Double side / single side Viewing distance 32M

Maintaind / Non-maintaind Supply Voltage 230V ± 10%  50Hz
Battery 4.8v NiCd IP Rate IP40
Dimensions(mm) 360 x 248 x 54     32M Certification CE RoHS
Installation Wall mounting Material Aluminum housing+Acrylic glass lens
  End Mounting Hosing color Aluminum

Ceiling mounting Emergency time 3 hours

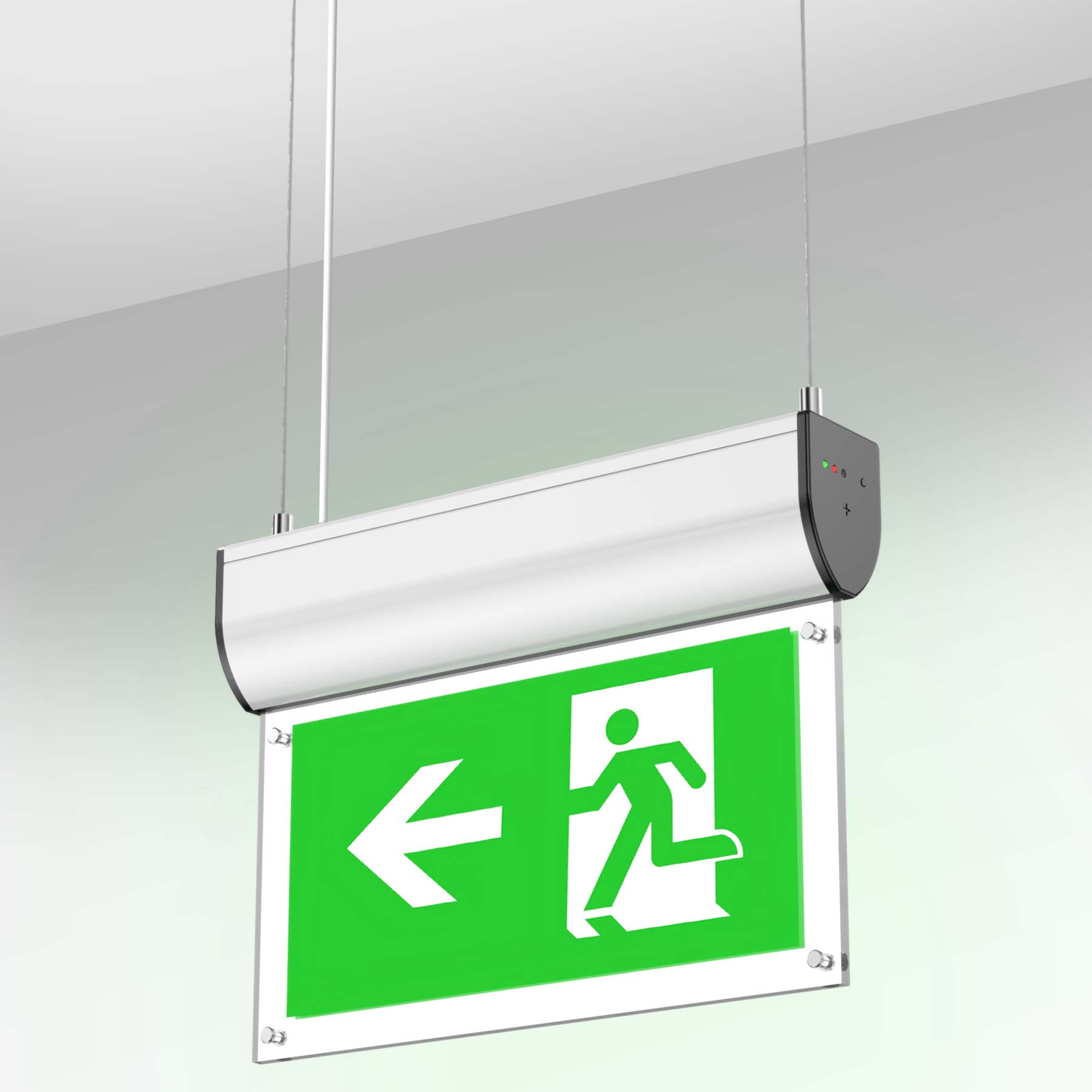

Suspended mounting Power < = 5W


Order code
Note: boxes 1 to 5 must be specified on all models with onee single letter in each box.


1, Versions
    S - Standard version               T - Self-test version

2, Emergency duration
    T - 3H duration                         O - 1H duration


3, Double / Single side
    D - Double side                        S - Single side

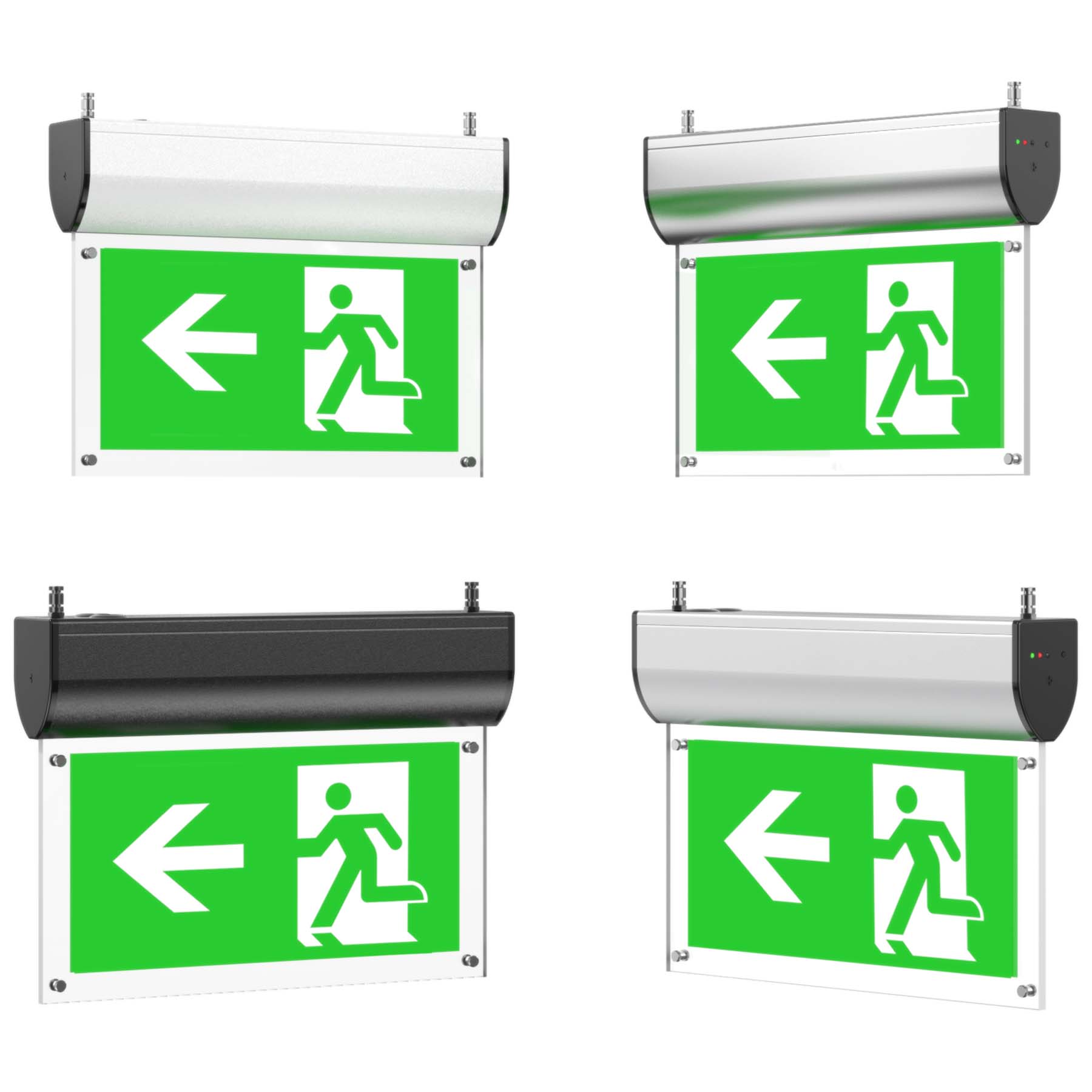

4, Housing color
    A - Aluminum(standard)       W - White         B - Brass finish        C - Chrome finish

5, Viewing distance
    S - 25M (standard)                            L - 32M

Example
YH-03S - STDAS
Present the YH-03S standard version, 3H duration, double side, aluminum housing color and 25M viewing distance Exit Sign

Installation
Notice: Installation brackets are seperate parts, when you order the emergency light, please tell us which brackets
             you want to order.
