Product Description：
Features

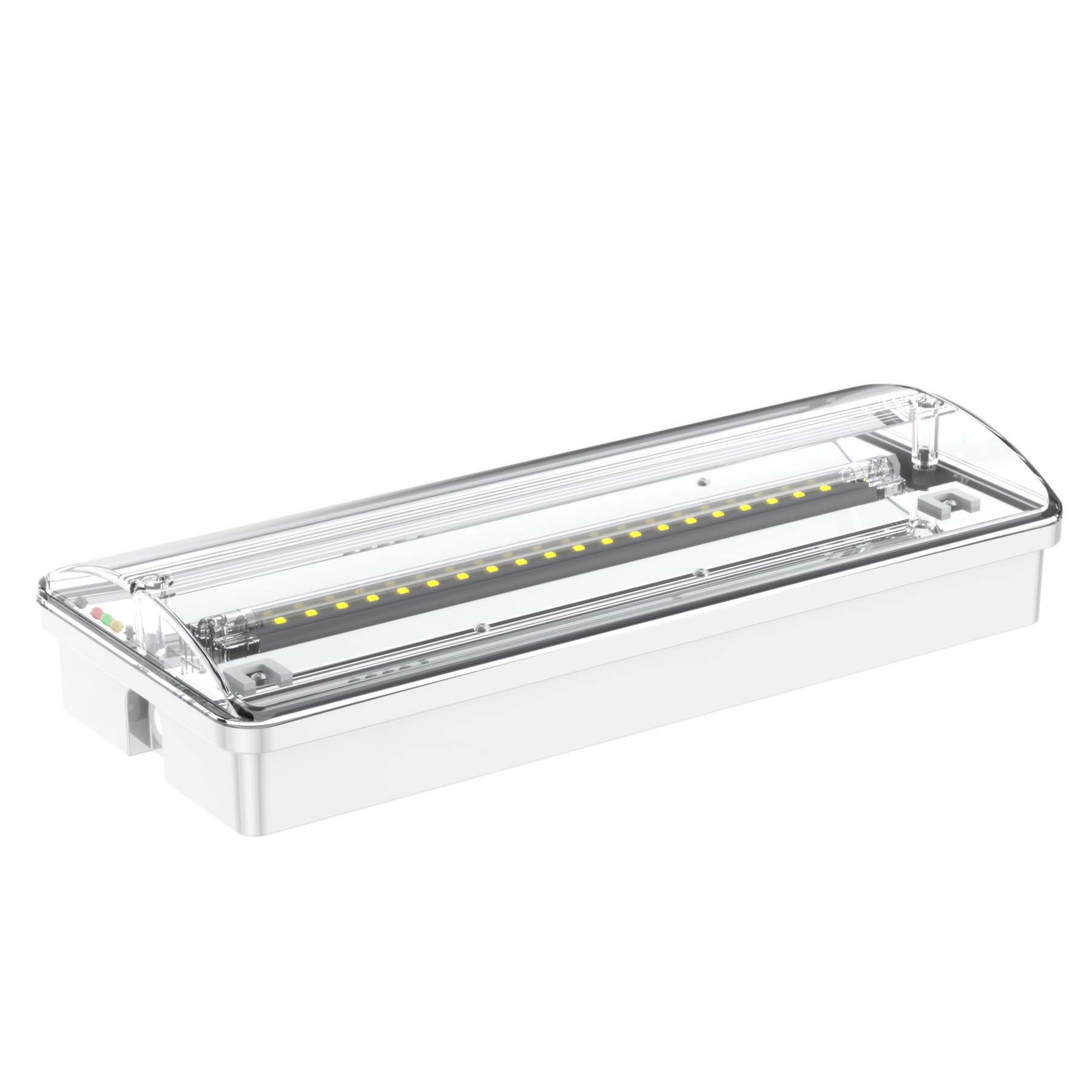

♦ IP65.versatile and flexible in demanding environments.
♦ Can be used as emergency and reference luminaire.
♦ Has both continuous operation (maintained) and operation at power failure(non-maintained).
♦ Supplied with interchangeable pictograph .
Specifications
|
Option
|
Self-test Version
|
LED Numbers
|
20pcs White LED
|
| |
Double side / single side
|
Viewing distance
|
30M
|
| |
Maintaind / Non-maintaind
|
Supply Voltage
|
230V ± 10% 50Hz
|
|
Battery
|
Ni-Cd 1800mAh
|
IP Rate
|
IP65
|
|
Dimensions(mm)
|
385 x 162 x 76mm
|
Certification
|
CE RoHS
|
|
Installation
|
Ceiling mounting/Wall mounting
|
Material
|
PC Plastic box +Transparent PC cover
|
|
Emergency time
|
3 hours
|
Hosing color
|
white
|
|
Power
|
≤10W
|
Insulation Class
|
Ⅱ
|
Order code
Note: boxes 1 to 3 must be specified on all models with one single letter in each box.
1. Versions
S-Standard version T - Self-test version
2. Maintained / Non-Maintained
M -Maintained N - Non-Maintained
3. Pictograph
W - With surface pictograph N - Without pictograph
Example
YH-17B-SMW

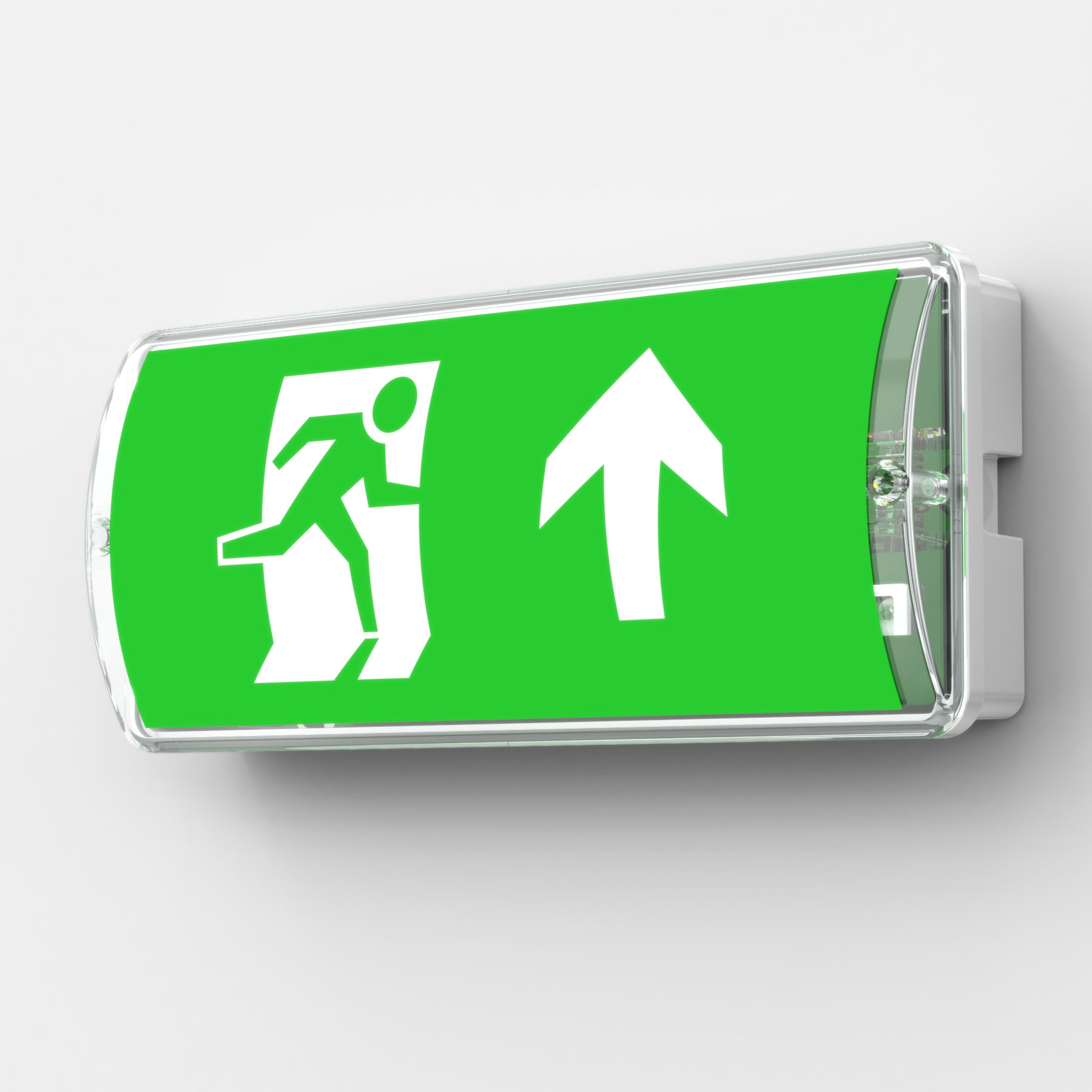

Present the YH-17B standard version, Maintained and With surface pictograph Exit Sign
Product Size & Installation
