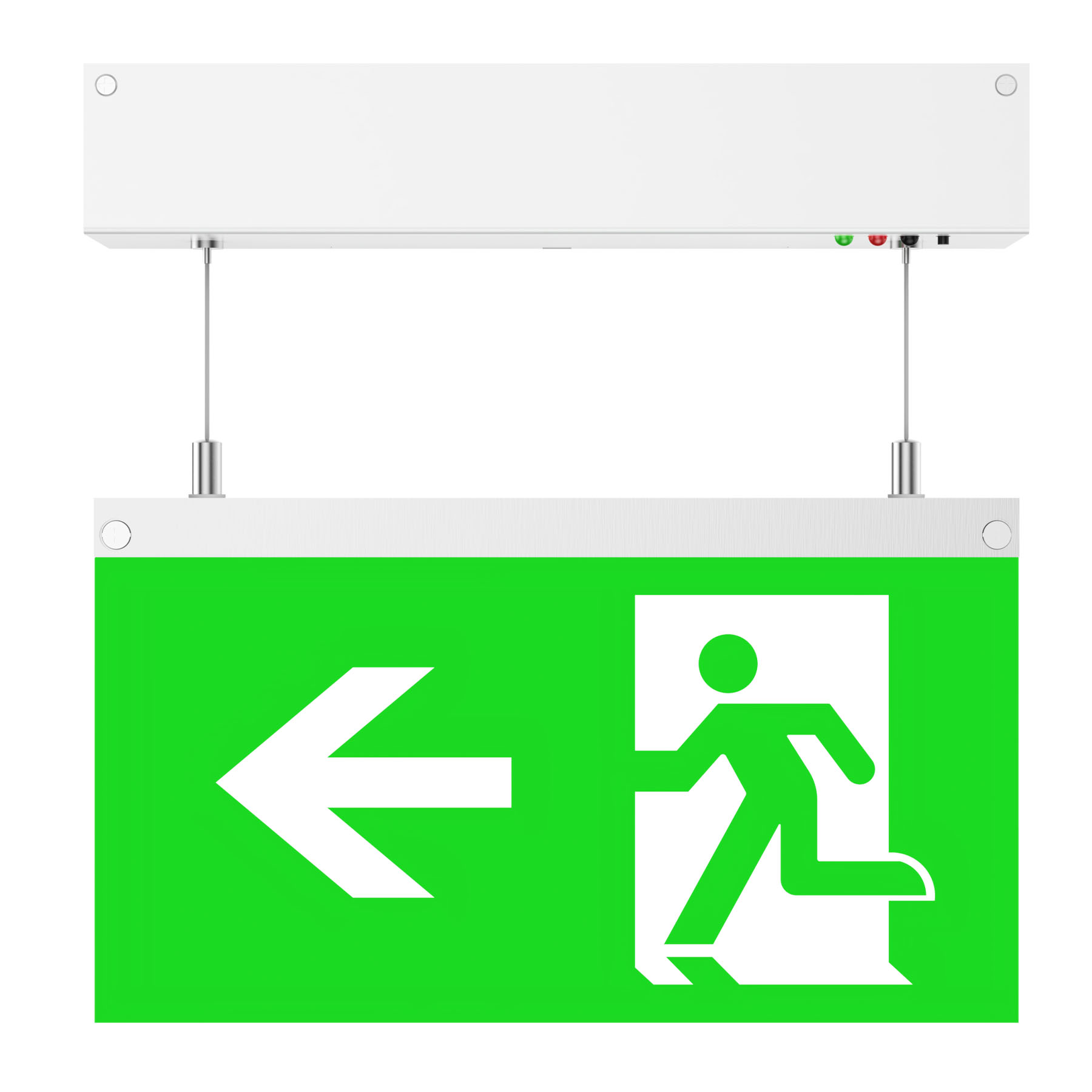

Product Name:Fire LED Emergency exit signs light
Product Model:YH-25A
   Product Description:
Features
♦ Attractive and impressive design
♦ Crystal clear acrylic glass panel - even light distribution, excellent visibility
♦
Screws fixed sign image - the image is a choice part of the exit sign and it can be easily changed at customer's option
♦
Illuminant - long life, durable and energy efficient LED, no routine lamp maintenance

Specifications

Option

Self-test Version

LED Numbers

12pcs White LED



Double side / single side

Viewing distance

25M



Maintaind / Non-maintaind

Supply Voltage

230V ± 10%  50Hz

Battery

LiFePO4 3.2V/1.5Ah

IP Rate

IP40

Dimensions(mm)

250 x 60 x 45mm

Certification

CE RoHS

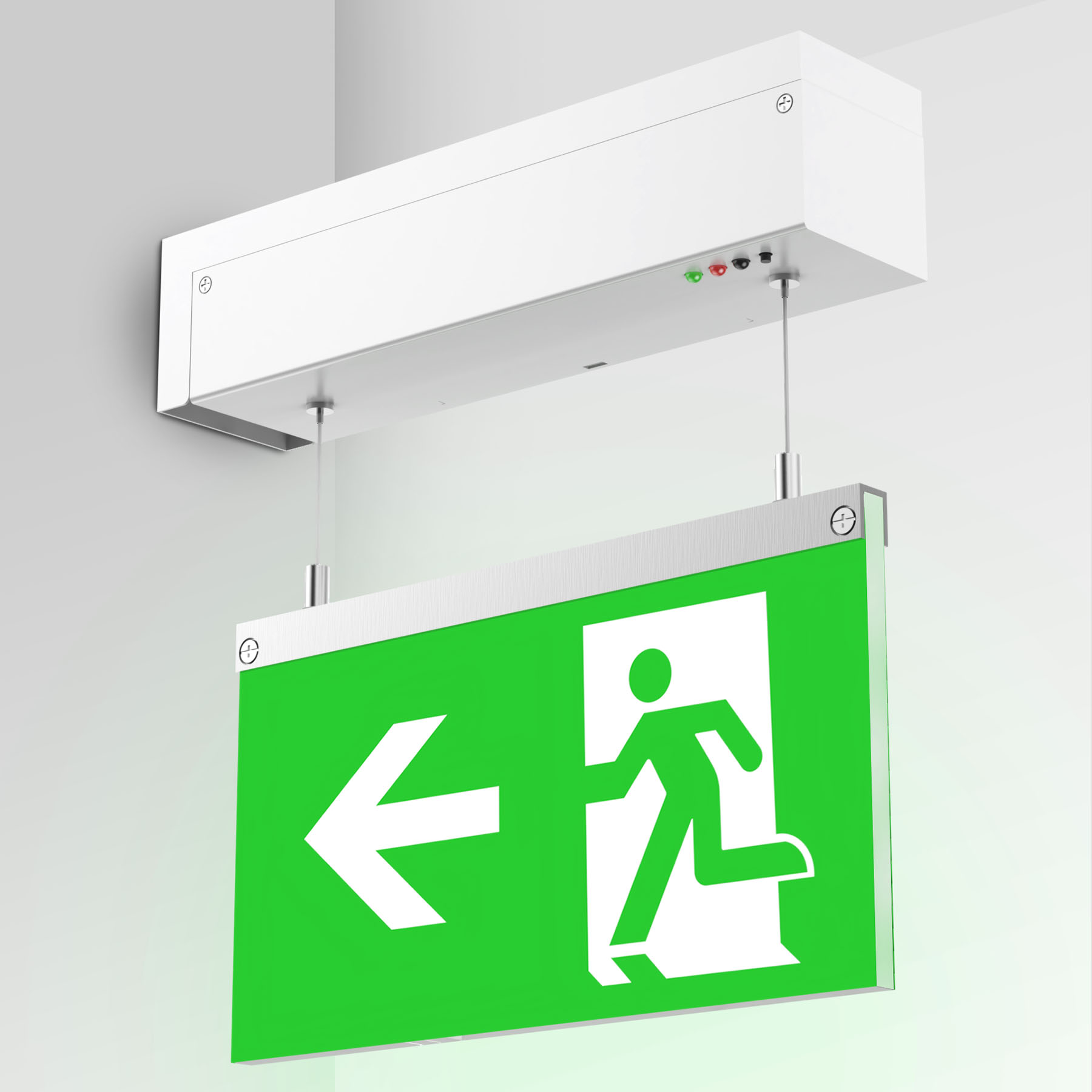

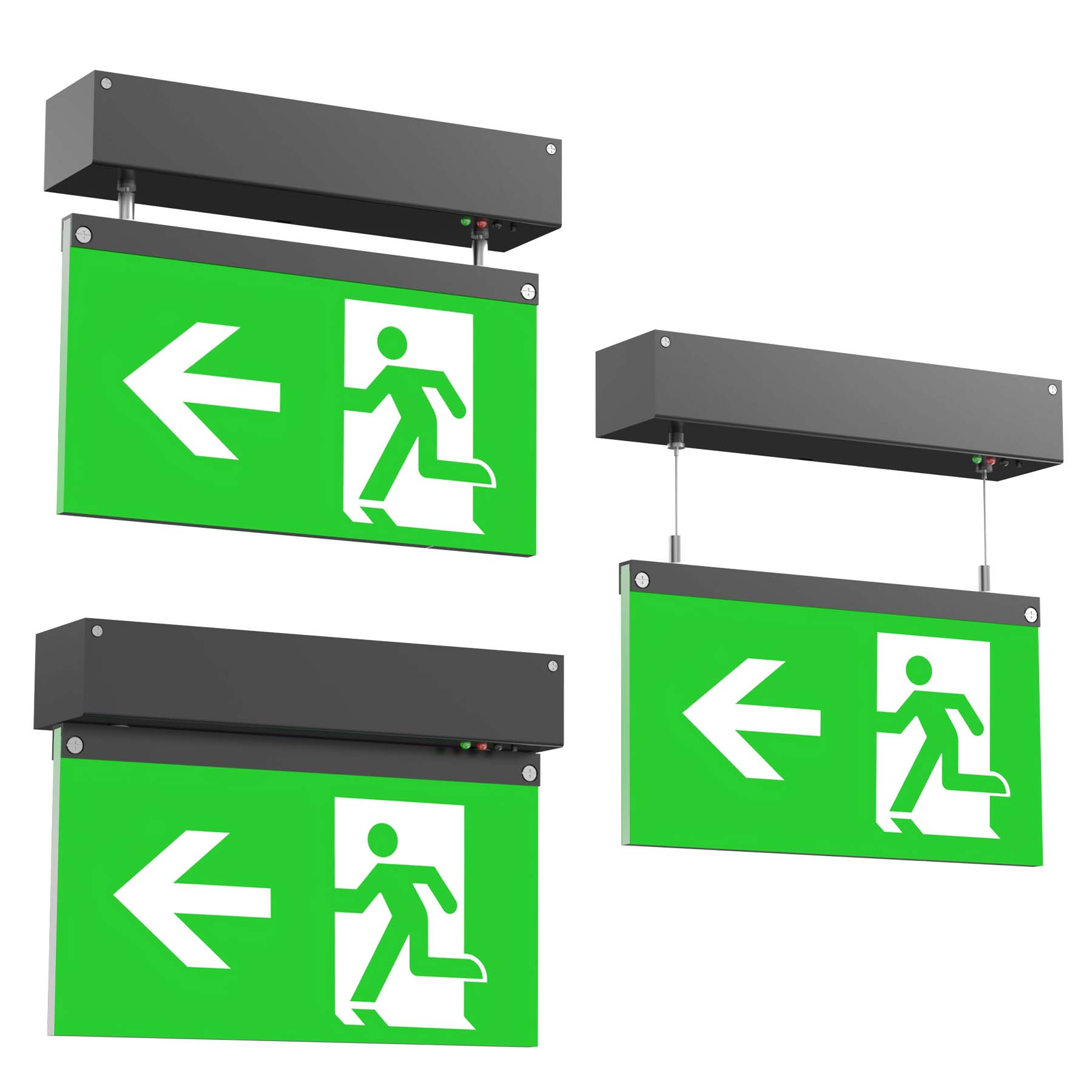

Installation

Wall mounting

Material

Steel  housing+Acrylic glass lens



End Mounting

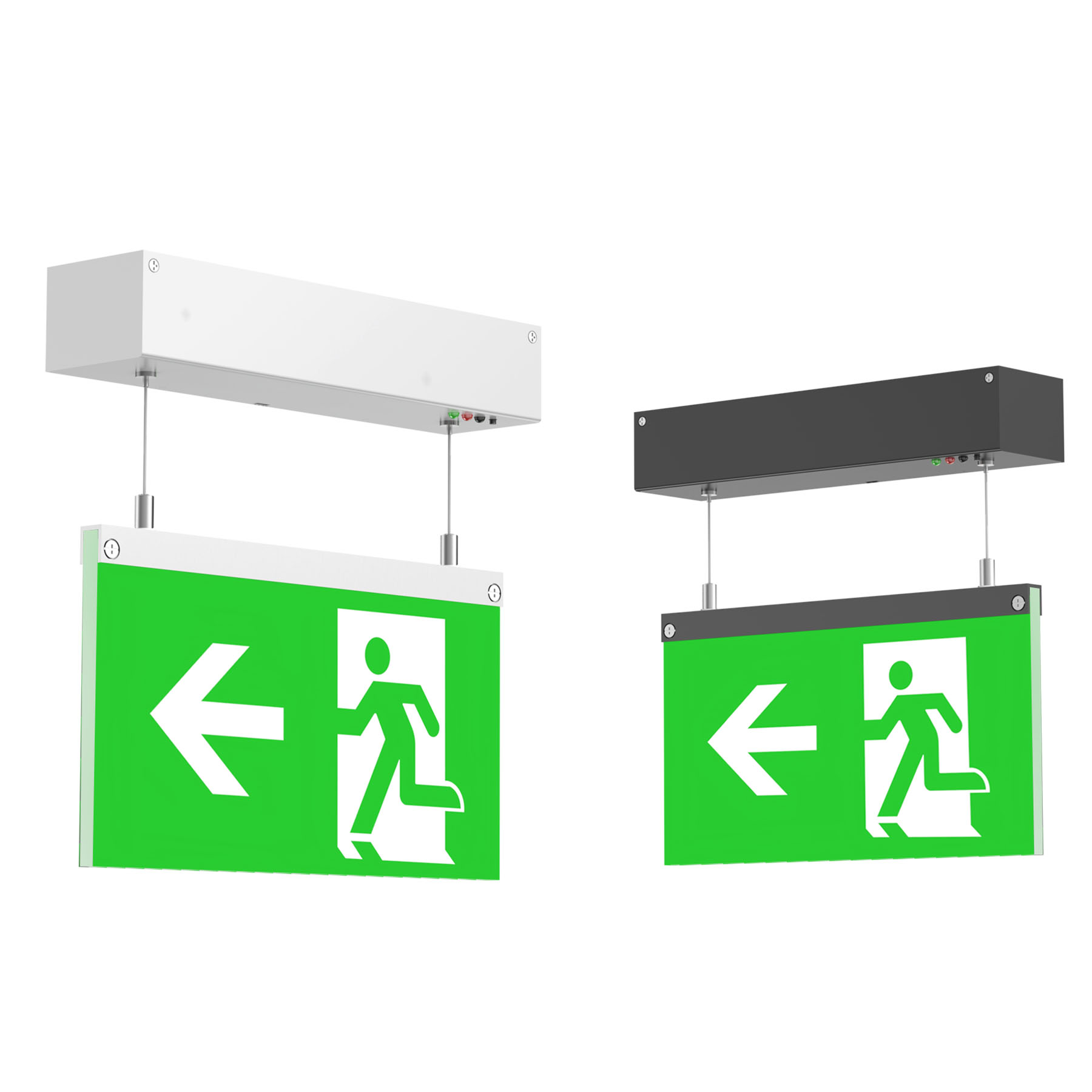

Hosing color

White/Black

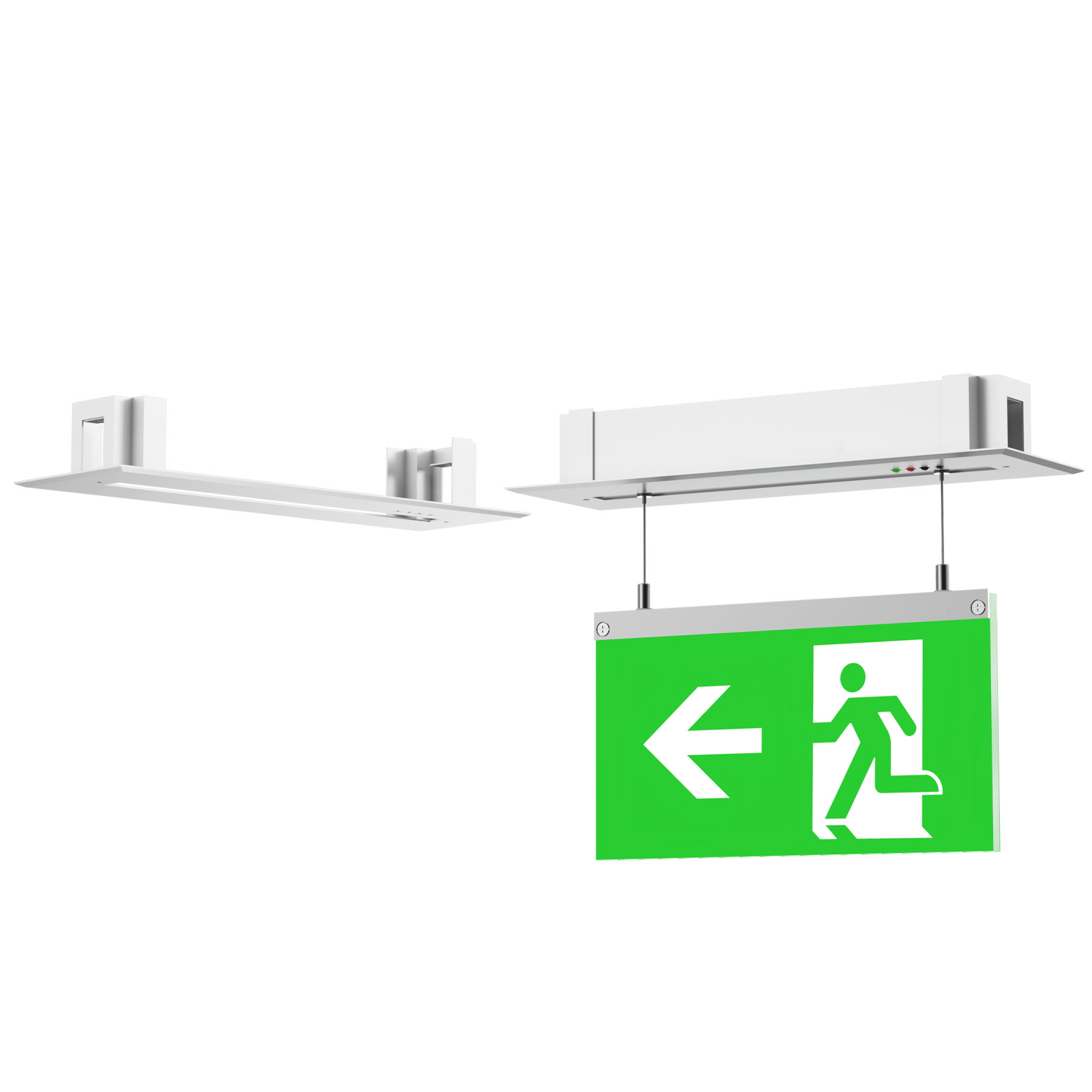

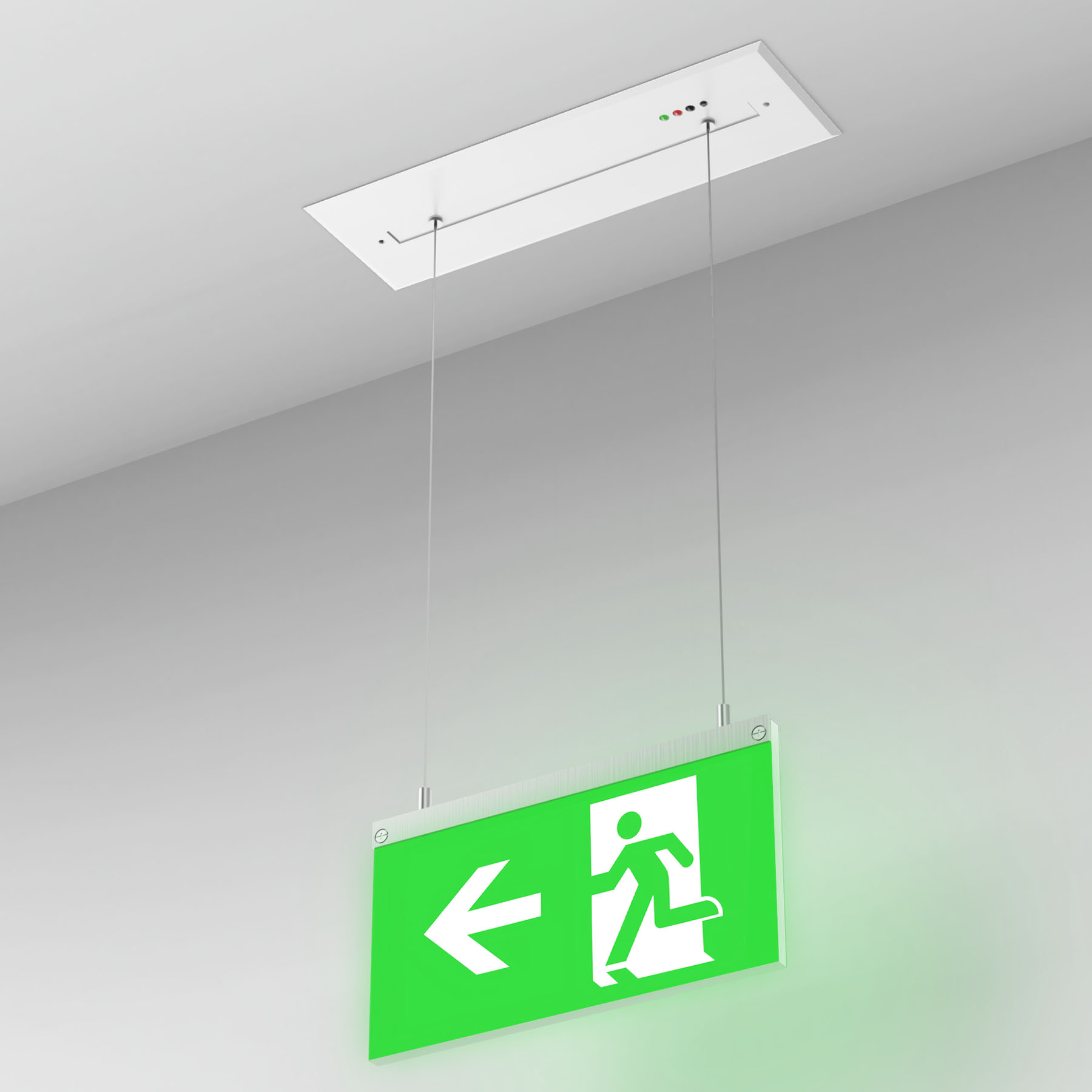

Ceiling mounting

Emergency time

3 hours

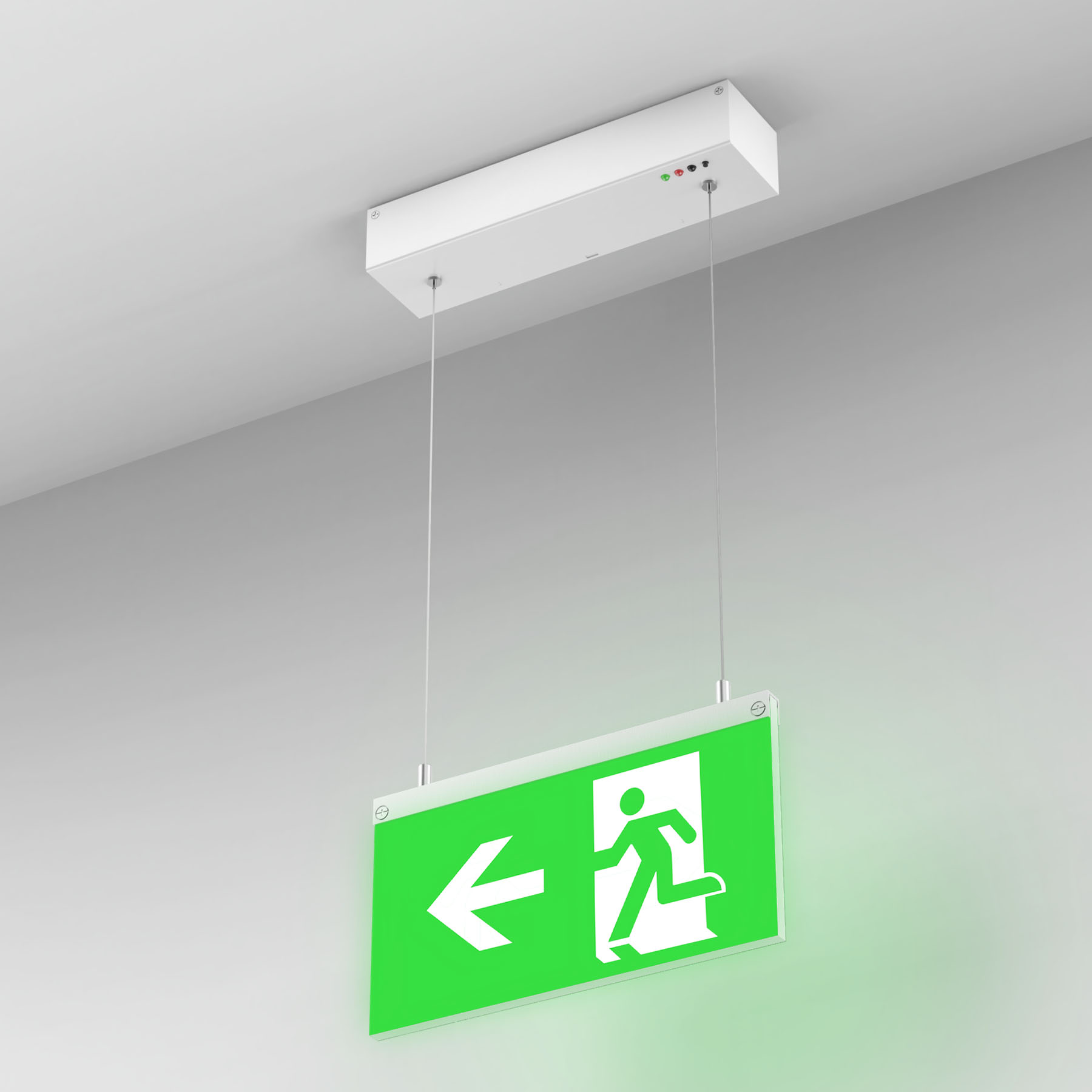

Suspended mounting

Power

< = 5W



Order code
Note: boxes 1 to 5 must be specified on all models with onee single letter in each box.

1, Versions
    S - Standard version               T - Self-test version

2, Emergency duration
    T - 3H duration                         O - 1H duration


3, Double / Single side
    D - Double side                        S - Single side


4, Housing color

 W - White         B - Black

Example



YH-25A-STDW

Present the YH-25A standard version, 3H duration, double side and white housing Exit Sign

Product Size & Installation
