Product Description：
Features
♦ Easy to install - four mounting ways
♦ Screws fixed sign legends - easy replacement, the legend panel is an optional part of the exit sign
♦ Light source - long life, ultra bright, energy saving, maintenance free LED
♦ Appealing, novel, high style design
♦ High performance recharge and discharge protection system
♦ Rechargeable backup build-in battery
Specifications
|
Option
|
Self-test Version
|
LED Numbers
|
12pcs White LED
|
| |
Double side / single side
|
Viewing distance
|
25M
|
| |
Maintaind / Non-maintaind
|
Supply Voltage
|
230V ± 10% 50Hz
|
|
Battery
|
LiFePO4 3.2V/1.5Ah
|
IP Rate
|
IP40
|
|
Dimensions(mm)
|
255 x 48 x 200mm
|
Certification
|
CE RoHS
|
|
Installation
|

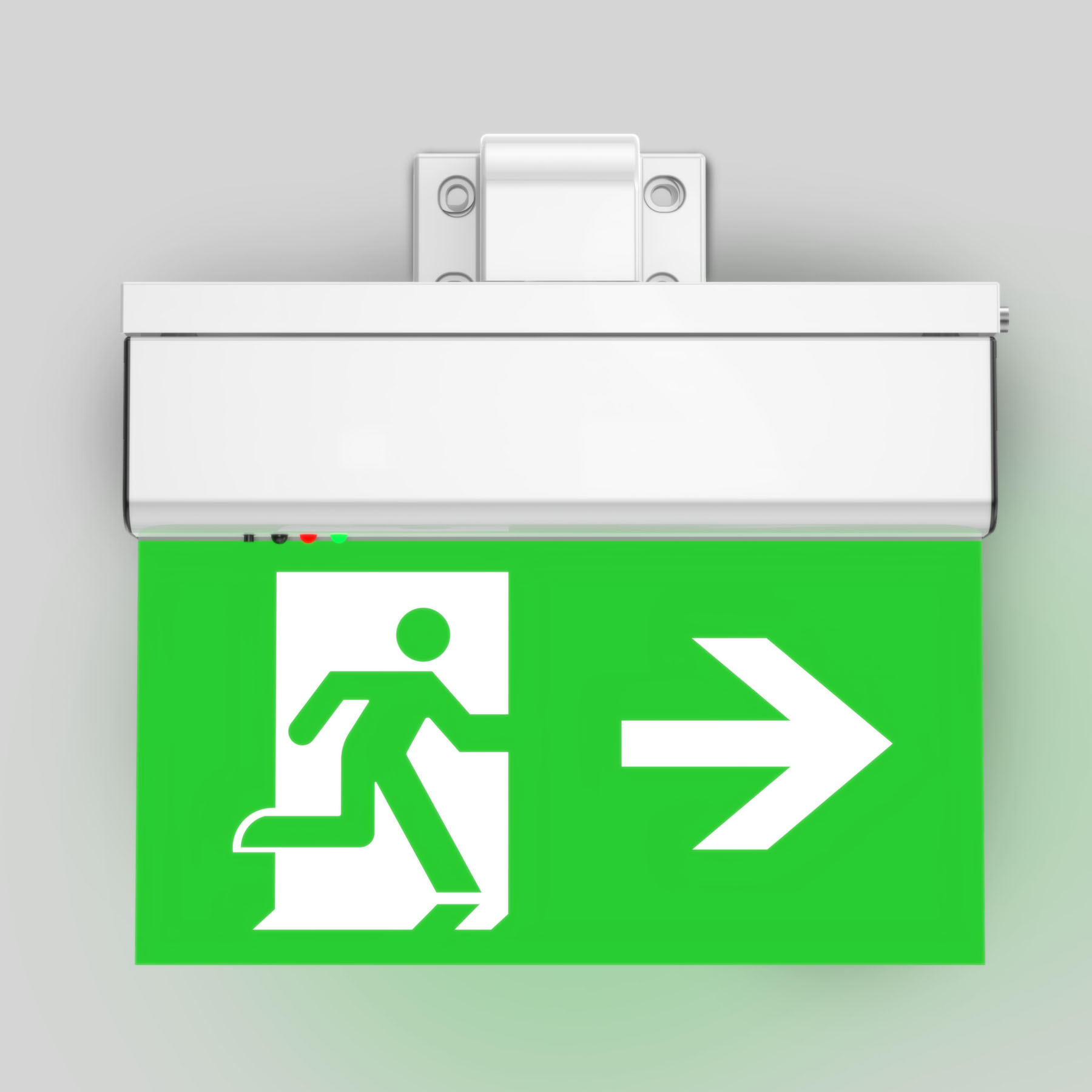

Wall mounting
|
Material
|
Aluminum housing+Acrylic glass lens
|
|
|

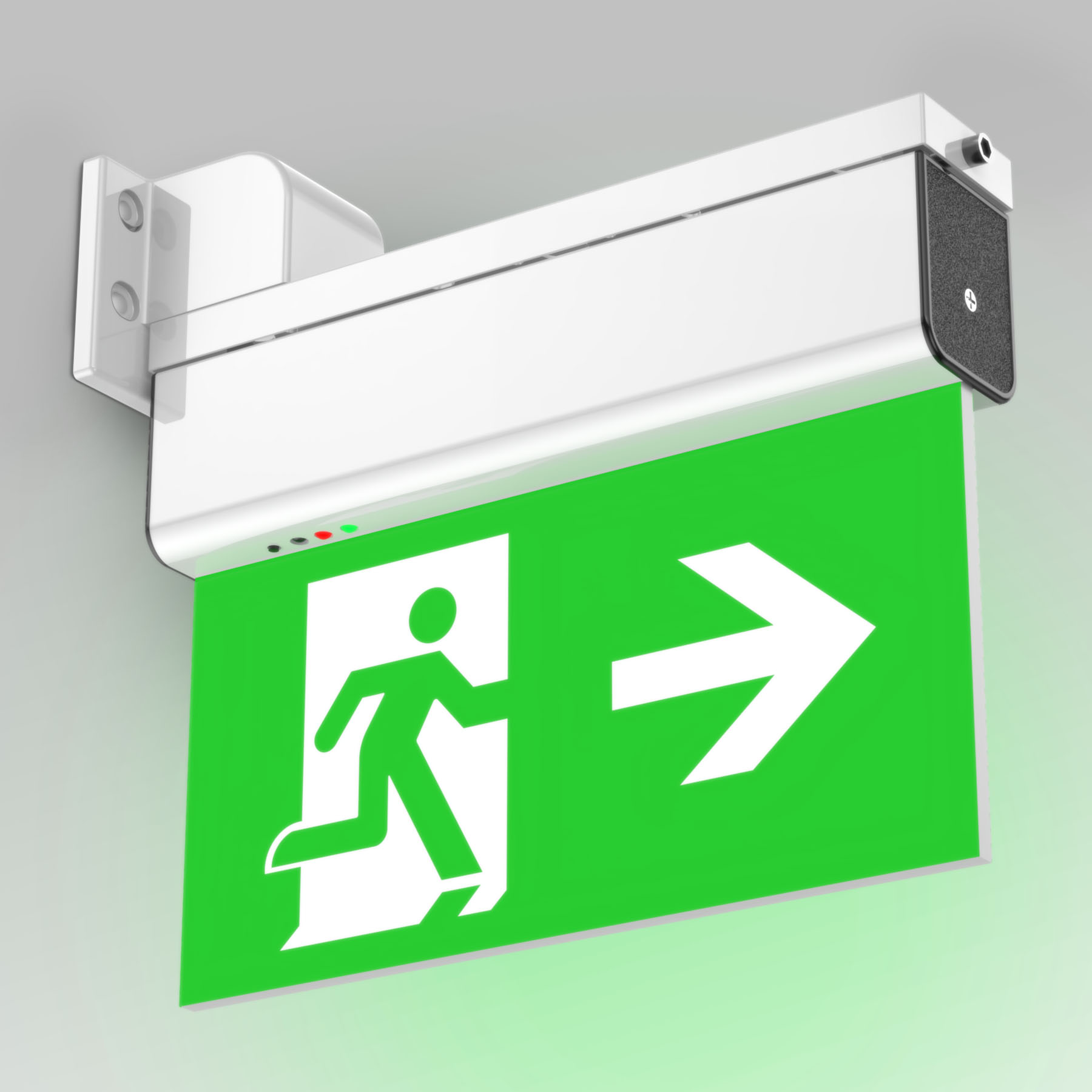

End Mounting
|
Hosing color
|
Aluminum
|
| |

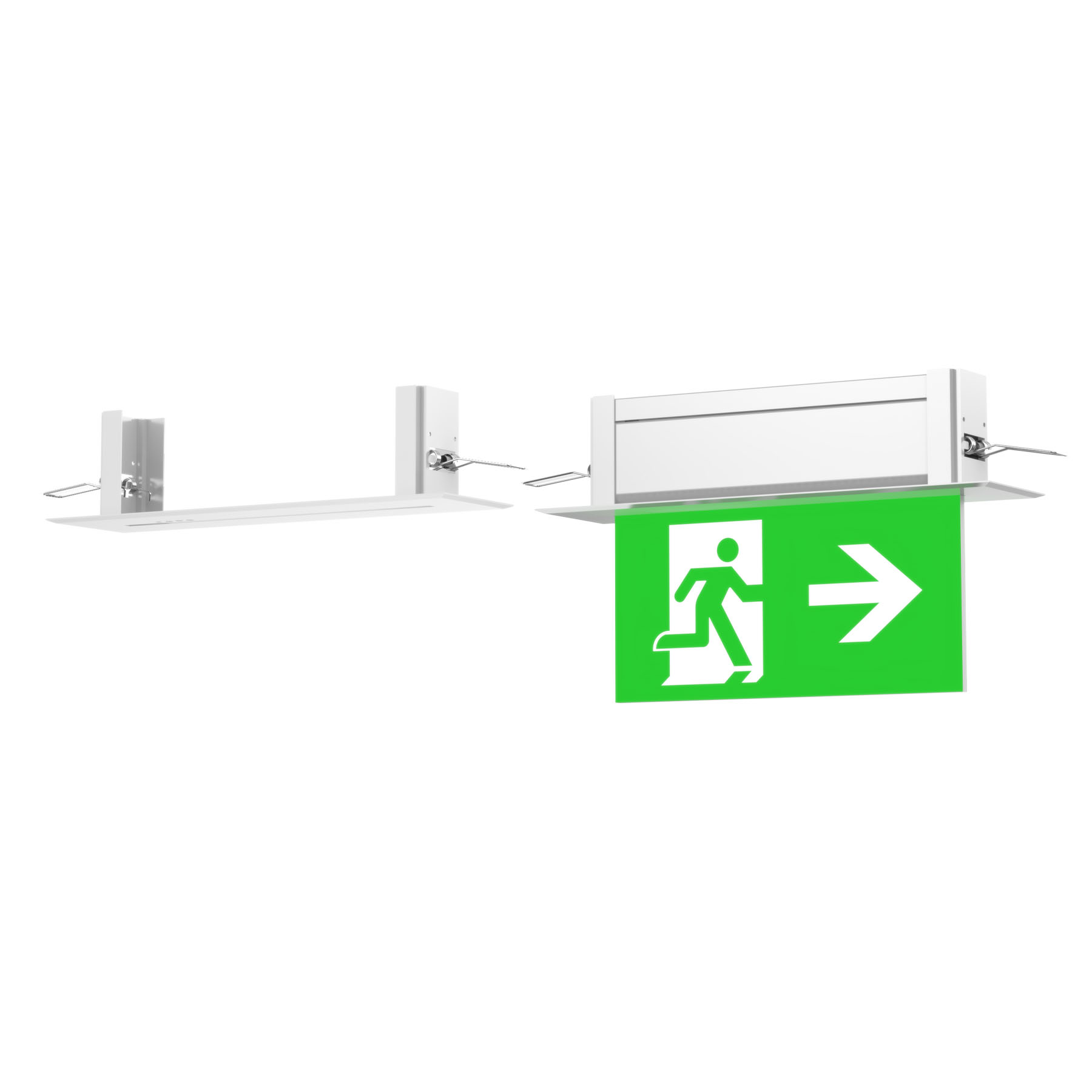

Ceiling mounting
|
Emergency time
|
3 hours
|
| |
Suspended mounting
|
Power
|
≤5W
|
6，
Order code
Note: boxes 1 to 4 must be specified on all models with onee single letter in each box.
1, Versions
S - Standard version T - Self-test version
2, Emergency duration
T - 3H duration O - 1H duration
3, Double / Single side
D - Double side S - Single side
4, Housing color
A - Aluminum(standard) W - White B - Brass finish C - Chrome finish
Example
YH-24C - STDA
Present the YH-24A standard version, 3H duration, double side, aluminum housing color Exit Sign
Product Size & Installation
Notice: Installation brackets are seperate parts, when you order the emergency light, please tell us which brackets you want to order.
